High Strength Flexible Shaft Coupling Compact Structure Stable Performance

Description

Double diaphragm coupling relies on the elastic deformation of the diaphragm to compensate the relative displacement of the two shafts. It is a high-performance flexible coupling for metal elastic components. It is not lubricated, has a compact structure, high strength and long service life. It is suitable for shaft drive of high temperature, high speed and corrosive medium working conditions, and is widely used in shafting of various mechanical devices. Compared with the toothed coupling, the diaphragm coupling has no relative sliding, no lubrication, no sealing, no noise, no maintenance, and is convenient to manufacture. It can partially replace the gear coupling.

Feature

1. The strength of the elastic element is relatively high, and it is not only small in size but also compact in structure compared with other couplings that transmit the same torque.

2, the performance is very stable, and the life is also very long.

3. The manufacturing process is more complicated and the cost is higher.

4, metal elastic components are common are diaphragm, bellows, connecting rods and so on.

Metal elastic component couplings are mainly used in the following applications:
1. Pumps and fans with high power and high speed.

2. The impact torque is large and the load changes severely.

3. Precision transmission machinery and data transmission system.

4, high temperature, high precision transmission requirements.

flexible shaft coupling

elastic shaft coupling

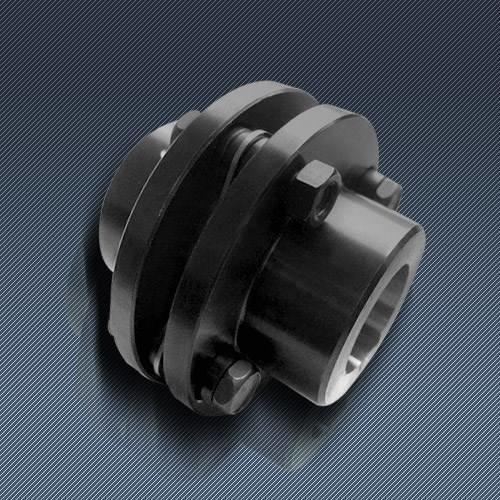

High Strength Flexible Shaft Coupling Compact Structure Stable Performance Images
